VTOL X-Plane
From Wikipedia, the free encyclopedia
The
Vertical Take-Off and Landing Experimental Aircraft (
VTOL X-Plane) program is an
American research project sponsored by the
Defense Advanced Research Projects Agency (DARPA). The goal of the program is to demonstrate a
VTOL aircraft design that can take off vertically and efficiently hover, while flying faster than conventional
rotorcraft.
[1] There have been many previous attempts, most of them unsuccessful.
[2][3]
A helicopter with a conventional rotor layout has a theoretical top
speed of 200 knots (230 mph; 370 km/h), after which it suffers from
dissymmetry of lift. Some designs have successfully created hovering and high-speed aircraft, including the
Bell Boeing V-22 Osprey tiltrotor that can fly at 275 knots (316 mph; 509 km/h) and the
Sikorsky X2 compound helicopter
that flew at 260 kn (300 mph; 480 km/h), but both made significant
aerodynamic compromises to hovering efficiency or range. DARPA's goal is
to demonstrate a VTOL aircraft that can achieve a sustained top speed
of 300 to 400 knots (345 to 460 mph (555 to 740 km/h)).
[1]
All competitors for the program opted to demonstrate their concepts using an
unmanned aerial vehicle even though it was not required, but the technologies are intended to be applied to manned aircraft as well.
[4]
Aurora Flight Sciences was selected to create a test design, which will fly in 2018.
[5]
Requirement and programme
DARPA
announced the programme in February 2013 with a requirement to create a
new aircraft that uses the best features from both vertical take-off
landing technology and that used for conventional aircraft.
[6] The hybrid aircraft will try to improve on four areas:
- Speed - achieve a top speed of at least 300 kts.[7]
- Hover - increase hover efficiency to at least 75 percent.[7]
- Cruise efficiency - achieve a lift-to-drag ratio of at least 10.[7]
- Load - ensure the solution can carry a useful load of at least 40% of the projected gross-weight.[7]
Phase One - Preliminary design study
The first two companies to be involved were announced in December 2013 when
Sikorsky Aircraft was awarded a
US$14.4 million contract and
Aurora Flight Sciences was given US$14 million for preliminary design studies as part of the $47 million Phase One budget.
[8][9]
On 18 March 2014, DARPA announced that Sikorsky, Aurora Flight Sciences,
Boeing, and
Karem Aircraft
had been selected to compete for the VTOL X-plane. The four companies
have based their designs on unmanned aircraft and will compete over the
next 20 months. The name of Aurora's submission was revealed as the
LightningStrike
in February and although the design was unknown, the company has a
history of producing ducted fan and hybrid propulsion aircraft. Karem
Aircraft was expected to propose a
tiltrotor aircraft with an optimum speed rotor. The Boeing
PhantomSwift
embedded twin lifting fans inside the fuselage with tilting ducted fans
mounted on wingtips for lift and forward thrust; a scale demonstrator
was built and flown by the company in 2013. Sikorsky teamed with
Lockheed Martin
for a "low complexity" design that combined fixed wing aerodynamics and
advanced rotor control. A single design was to be selected in autumn
2015 for a $95 million contract
[10] to build a demonstrator in phase 2.
[11]
- Rotor Blown Wing - Sikorsky and Lockheed Martin teamed to develop
their unmanned rotor blown wing concept. They claimed it integrated
fixed wing aerodynamics and advanced rotor control to provide a low
complexity configuration.[8] An artist depiction of Sikorsky's Rotor Blown Wing bore visual resemblance to the Boeing Heliwing, an unmanned tailsitter
intended to reach 180 kn (210 mph; 330 km/h) in forward flight; it
first flew in April 1995 but crashed in July and the project was
shelved. Sikorsky confirmed that the Rotor Blown Wing would be a
tailsitter, with its name suggesting that the wing remains aligned into
the proprotor wash during transition between vertical and forward,
reducing download on the wing in hover mode.[3][12]
- LightningStrike - Aurora Flight Sciences' LightningStrike would
achieve high overall efficiency by integrating the propulsion into the
air vehicle's aerodynamic design. The company has experience with
ducted-fan designs through Goldeneye series aircraft, also under DARPA programs, and with hybrid-electric propulsion with the Excalibur unmanned aerial vehicle proof-of-concept aircraft to create a design providing vertical takeoff and landing with high-speed horizontal flight.[13]
Levering this experience Aurora Flight Sciences' developed a
revolutionary vehicle concept that employs Electric Distributed
Propulsion (EDP) in eighteen 31 in (79 cm) wing fans, and six 21 in
(53 cm) canard fans, driven by 3 MW of electricity.[3]
- Karem tiltrotor - Karem Aircraft submitted a tiltrotor concept
called TR36XP, employing a slender-bodied fuselage with a
high-aspect-ratio gull wing.
The outer sections of the wing, together with two 36 ft
rotor/propellers, rotated through 90 degrees for transition between
hover and forward flight, powered by two Rolls-Royce Turbomeca RTM322.[3][14]
- PhantomSwift - Boeing's PhantomSwift concept had two large internal
fans to provide lift with two wingtip fans that provide stability while
hovering. In forward flight, the internal fans stop supplying power and
the wingtip fans provide thrust. Boeing claimed that this configuration
was 50 percent more efficient in the hover than a typical helicopter,
and expected to have a top speed of 740 km/h (460 mph; 400 kn). The
full-size version would have had a wingspan of 50 ft (15 m), a fuselage
length of 44 ft (13 m), and weigh 12,000 lb (5,400 kg).[15] The demonstrator would be powered by one or two General Electric CT7-8 engines,[3] but a production version would be powered by an all-electric drive.[16]
Phase Two
The
Design, development and integration phase is expected to last
18-months; Phase Two will allow companies to mature their designs.
[7][8]

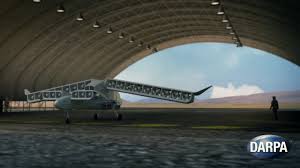

On 3 March 2016, DARPA awarded Aurora Flight Sciences $89.4 million
to build and demonstrate their LightningStrike concept, beating out the
other three competitors. The LightningStrike is a tilting-wing design
powered by one
Rolls-Royce AE1107C turboshaft engine, the same type used on the V-22 Osprey, that generates electric power via three
Honeywell generators to run 24 distributed ducted fans, three each in the forward
canards
and 18 across the main wing. Rather than using conventional engines
like all the other entrants, the aircraft relies on "distributed
electric propulsion," where the three generators that produce three
megawatts (4,023
horsepower) of electricity, as much as a commercial
wind turbine,
power individual motors that drive the fans; each wing fan uses a
100 kW motor, and each canard fan a 70 kW motor. The air vehicle will
weigh between 10,000–12,000 lb (4,500–5,400 kg), about the size of a
UH-1Y Venom,
and cruise faster than 300 knots, 50 knots faster than the V-22. Phase
II of the VTOL X-Plane project will fabricate two air vehicles before
flight testing, planned by September 2018.
[5][17][18][19][20] A 20 percent-scale demonstrator, weighing 325 lb (147 kg) using wings and canards made of carbon composites and
3D-printed plastics, was flown on 29 March 2016.
[21][22]
Phase Three
Phase
Three will last 12-months from February 2017 to February 2018 and will
be ground and flight tests of the experimental designs.
[7][8]
